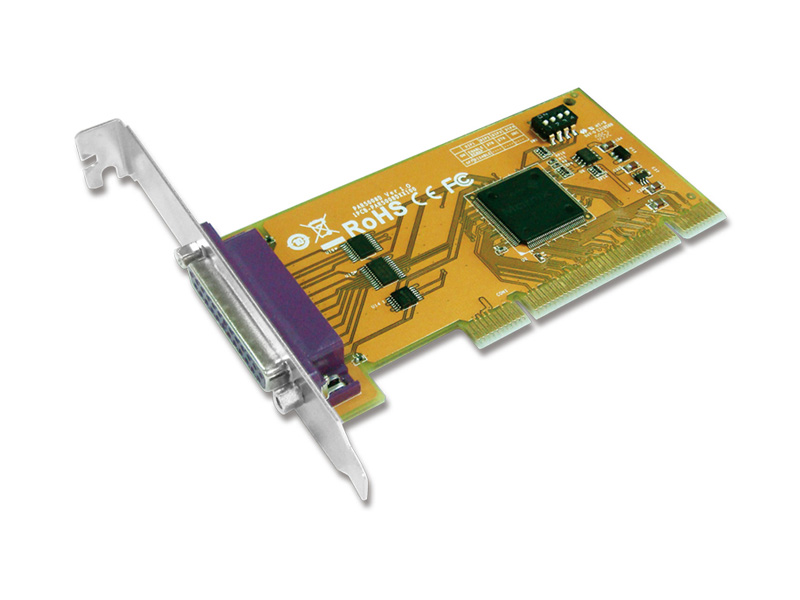

SUNIX PAR5008D PCI Remap Parallel card enables users to expand one additional real ECP/EPP/SPP/BPP communication LPT port on their PC-based system for connecting their parallel devices. Furthermore, this board can be installed as a fully featured I/O mapped parallel port as 278, 378, and 3BC legacy ISA address under Microsoft Windows and DOS operation systems. User can connect software protection dongles, JTAG chip programmers, data acquisition, machine process control, scientific measurement systems, and other parallel devices as well as computer's native parallel port. SUNIX PAR5008D Remap card is designed with SUNIX high performance and realizable parallel connectivity controller, UL7512EQ and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.
Specifications
Description |
|
| Product Description | 1-port Remap IEEE1284 Parallel Universal PCI Board |
Parallel Communication |
|
| Interface | IEEE1284 |
| Controller | SUNIX UL7512EQ |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 1-port |
| IO | 378, 278, 3BC or PCI Plug-n-play Assigned by System |
| FIFO | 16 byte (Hardware) |
| Signal | SPP/ECP/EPP/BPP ( Auto-switching ) |
| Speed | Maximum 1.8MBps |
| PCB connector | DB25 Female |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
Driver Support |
|

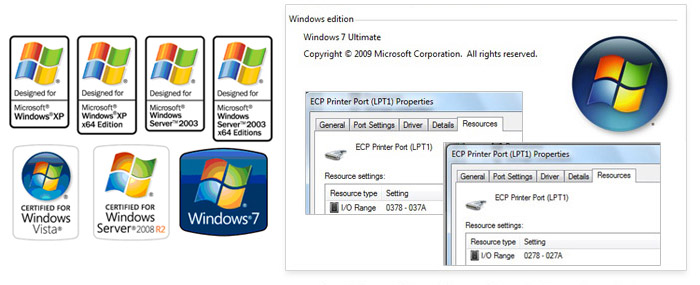

| Microsoft Client | Windows 98/XP/Vista/7/8 (X86/X64) |
| Microsoft Server | Windows 2000/2003/2008/2012 (X86/X64) |
| Microsoft Embedded | Windows XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7 |
| Linux | Linux 2.4.x / 2.6.x / 3.x |
| DOS | DOS |
Regulatory Approvals |
|
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS |
| Software |
Microsoft WHQL Windows • Microsoft Client: XP/Vista/7/8 (X86/X64) • Microsoft Server: 2000/2003/2008/2012 (X86/X64) |
Environment |
|
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension |
|
| PCB Dimension | 120 x 61 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
 |
Note:
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.
Application

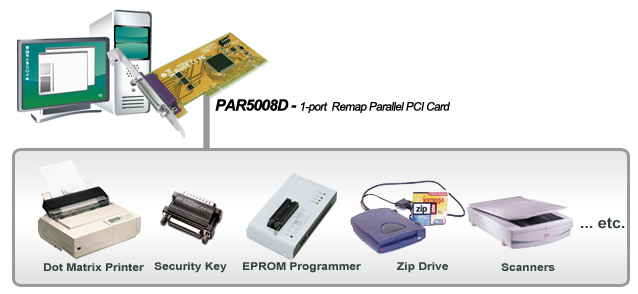

Support All Devices Requiring Hardware DB25-Pin Connection |
|
The DB 25-pin connector of this board is suitable for connection with Printer requiring parallel interface, Scanners, LapLink, Zip Drive, Tape Drive, LS-120 Drive, CD-R/RW, EPROM Programmer, Intelligent UPS, Plotter, Bank Passbook Printer, software protection dongles, JTAG chip programmers, data acquisition, machine process control, scientific measurement systems, etc. |
 |
Features
- High reliability SUNIX UL7512EQ Parallel controller on-board.
- Expand single IEEE1284 compatible DB-25 type Parallel LPT port on system.
- Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
- Compliance with PCI 33MHz Version 3.0/2.3/2.2/2.1 specification.
-
Support IEEE 1284-1994 parallel port standard
* ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
* SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port). - Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
- Support legacy ISA address (278, 378, 3BC) or standard PCI Plug-n-Play modes.
- Install as a fully featured I/O mapped as computer's native parallel LPT port.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
