VGA0411 (phased out)

PCIe VGA 2D Graphics Controller
  • Fully compliant with PCI Express 1.1 specification.
  • Built-in standard VGA RGB connection.
  • Ultra-Low power consumption 2W makes heat sink free.
  • Max 2D resolution 16-bit 1920x1200@60Hz.
  • Certified by CE, FCC, VCCI, BSMI, and RoHS.
  • Supports a variety operation system, including Windows, Windows Embedded, Linux, DOS, FreeBSD, Solaris, and Netware.

Introduction

SUNIX VGA0411 graphics card which built-in XGI Volari™ Z11 chipset is specializes in commercial and industrial applications environments, only 2W ultra low power consumption, no heat-sink or fan needed, it is not only substantial increase in system MTBF rate and also best choice for green environmental protection energy conservation. With high quality 2D 1920x1200 resolutions, 16.7M colors output, various drivers supporting, PCI Express Bus cost efficient design, and low profile slim size dimensions, SUNIX VGA0411 is the high value and reliable graphics solution for server and cost conscious systems, such as servers, Thin Clients, ATM, POS system and industrial PC. This card is the best solution for multi-screen and expanding business opportunities.

Specifications

Interface:PCI Express (x1)
Controller: XGI Volari™Z11
Memory: 64MB (32M x 16bit) DDR2 Synchronous DRAM (SDRAM)
Port Type: VGA RGB (D-Sub)
Power Consumption: 2W

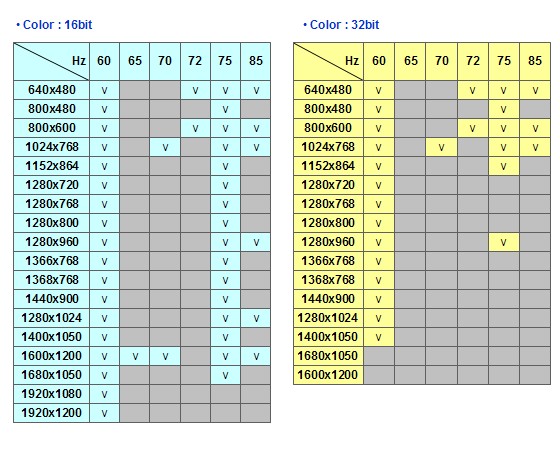

Resolution Support:

PCB Dimension:144 (W) x 69(L)mm
Bracket:Standard 121mm
Certified:
  • EUR:CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
  • US:FCC Part 15 Class B
  • TAIWAN:BSMI: CNS13438
  • JAPAN:VCCI
O.S. support:
  • Microsoft Client:XP/Vista/7/8/8.1 (X86/X64)
  • Microsoft Server:2003/2008/2012  (X86/X64)
  • Microsoft CE:4.2/5.0
  • Linux:RHEL/Fedora/Suse/RedFlag/Turbo Linux Server/Debian/Miracle
  • Others:FreeBSD / Solaris / NetWare / DOS

Environment


   Operation temp. -10 °C ~ 70 °C
   Operation humidity: 5 ~ 95% RH
   Storage temp.-20 °C ~ 85 °C

Support

Download Manual

Manual VGA User Manual

Download Datasheet

Datasheet VGA0411-DatasheetVer10

Download Driver

Driver 2.81.09.rar
Version 2.81.09
Update 2011-06-24 08:00:42
Size 19.3MB
OS
Linux 2.4x/2.6x/3.x
Driver V3.0.5.623.rar
Version V3.0.5.623
Update 2011-06-24 07:53:06
Size 218KB
OS
Windows CE 6.0
Driver V2.0.5.416.rar
Version V2.0.5.416
Update 2011-06-24 07:51:40
Size 187KB
OS
Windows CE 5.0
Driver R1.14.04.zip
Version R1.14.04
Update 2011-06-24 07:48:10
Size 15.6MB
OS
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 32/64 bit
Windows Server 2003 32/64 bit
